If you dimension bent elements from bow to arch, Depending on the angles, it may happen, that the dimension will not be parallel to the edge.

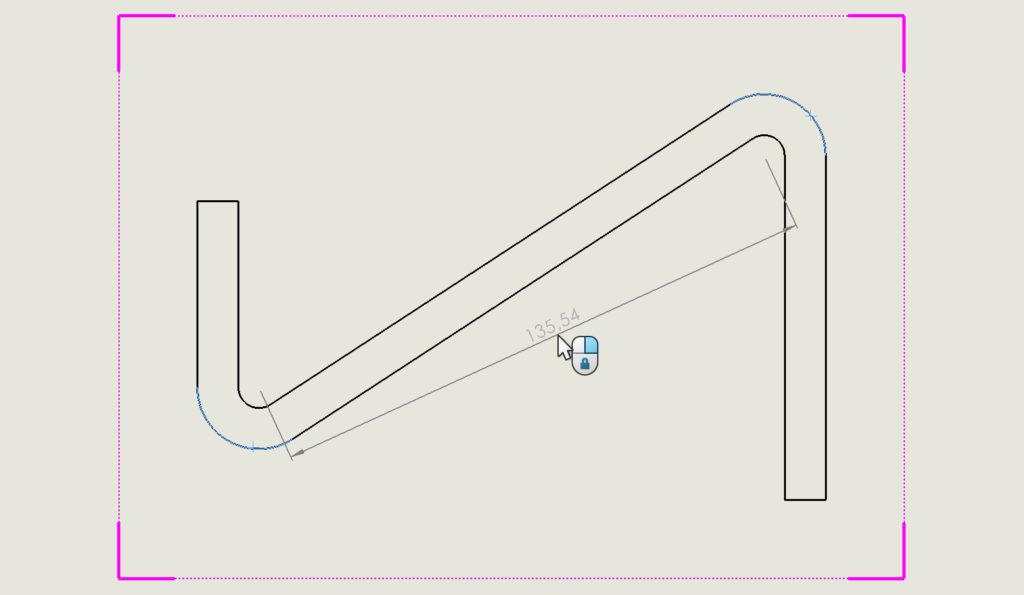

The solution is the option available under the right button Align to Edge.
Align to the edge in the dimensioning of the arches
