DimXpert Dimensions it's a collection of tools, used to insert dimensions and tolerances in parts and assemblies. It allows you to annotate models manually or automatically. Everything is based on predefined settings in the file properties.
The inserted annotations can be used in the add-in TolAnalyst for analyzing tolerance chains.

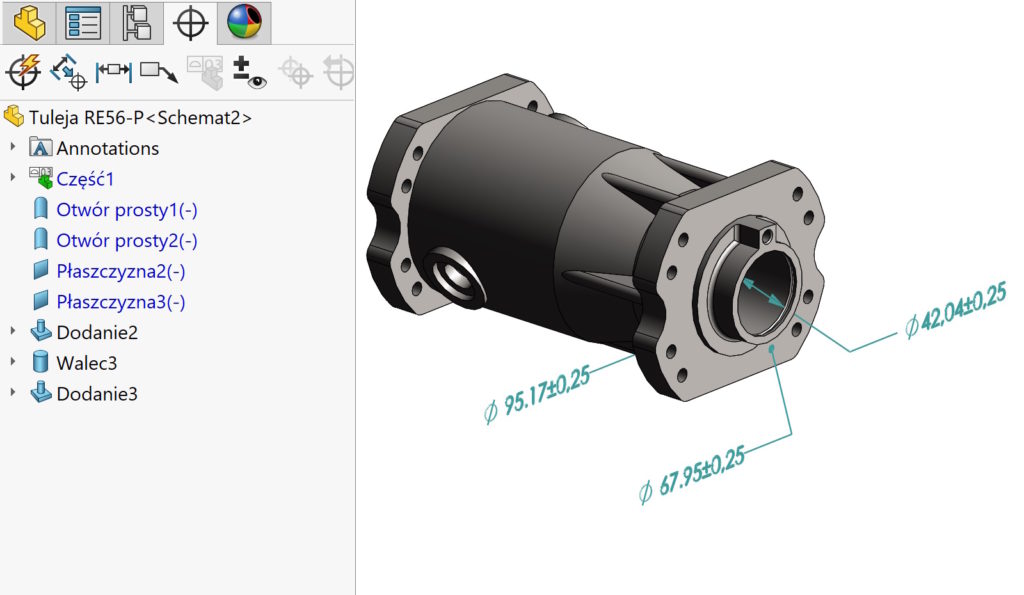

It is now possible to download the sketch dimension. To do this you need to choose Insert dimensions.
Then, indicate the operation from the tree or in the graphics window and below it the sketch dimension, who created this operation.
